Fiber optic laryngoscope sets

In a fiber optic set, the LED lamp sits in the handle and a fiber guide in each blade carries the light to the tip, so the blades have no lamps or electrical contacts. GERATI makes 23 fiber optic sets in Macintosh, Miller and flexible tip patterns, all with green-system handles.

  • 23 sets
  • Green-system handles
  • ISO 7376 compatibility
  • 2 spare LED lamps
Request a quote See all set codes

Parts of a fiber optic set

GERATI fiber optic laryngoscope set from above: GB 300 handle with green ring, fiber optic Macintosh blades and hard case
  1. 1Green ring. Marks a fiber optic handle
  2. 2Handle. Holds the LED lamp and batteries
  3. 3Fiber optic blades. No lamp or contacts on the blade
  4. 4Foam inlay. Shaped cut-outs for each item
  5. 5Clear lid. Contents visible before opening
  6. 6Carry handle. Moulded into the case
Shown: fiber optic Macintosh set with a GB 300 handle

Why buyers choose fiber optic

  • The lamp is in the handle, so there are no electrical parts in the blade to remove or damage during reprocessing
  • Light is delivered through the blade to the tip
  • Designed for ISO 7376 green-system compatibility with other green-system equipment
  • Three blade versions to match how your users reprocess: interchangeable, fixed and integrated

Standard sets cost less and suit buyers already using conventional handles. Compare on the standard sets page or read fiber optic vs standard blades.

What every set contains

  • 1 fiber optic handle: GB 300 adult, or GB 302 paediatric in -50 sets
  • 3 to 5 blades, depending on the set
  • 2 spare LED lamps
  • Hard carry case with a shaped foam inlay
  • Short insert with brief cleaning instructions; the full instructions for use are on gerati.com

Batteries are not included. Adult handles take 2 × C batteries and paediatric handles 2 × AA.

Fiber optic set codes

The suffix gives the blade sizes. See the set finder for all 33 sets on one grid.

SetBlade patternLight versionBlade sizesHandle
GA 102-30MacintoshFiber optic, interchangeable2, 3, 4Adult
GA 102-40MacintoshFiber optic, interchangeable0, 1, 2, 3Adult
GA 102-44MacintoshFiber optic, interchangeable1, 2, 3, 4Adult
GA 102-50MacintoshFiber optic, interchangeable00, 0, 1, 2, 3Paediatric
GA 102-52MacintoshFiber optic, interchangeable1, 2, 3, 4, 5Adult
GA 103-30MacintoshFiber optic, fixed tube2, 3, 4Adult
GA 103-40MacintoshFiber optic, fixed tube0, 1, 2, 3Adult
GA 103-44MacintoshFiber optic, fixed tube1, 2, 3, 4Adult
GA 103-50MacintoshFiber optic, fixed tube00, 0, 1, 2, 3Paediatric
GA 103-52MacintoshFiber optic, fixed tube1, 2, 3, 4, 5Adult
GA 104-44MacintoshFiber optic, integrated1, 2, 3, 4Adult
GA 104-45MacintoshFiber optic, integrated1, 2, 3, 4, 5Adult
GA 202-30MillerFiber optic, interchangeable1, 2, 3Adult
GA 202-40MillerFiber optic, interchangeable0, 1, 2, 3Adult
GA 202-44MillerFiber optic, interchangeable1, 2, 3, 4Adult
GA 202-50MillerFiber optic, interchangeable00, 0, 1, 2, 3Paediatric
GA 203-30MillerFiber optic, fixed tube1, 2, 3Adult
GA 203-40MillerFiber optic, fixed tube0, 1, 2, 3Adult
GA 203-44MillerFiber optic, fixed tube1, 2, 3, 4Adult
GA 203-50MillerFiber optic, fixed tube00, 0, 1, 2, 3Paediatric
GA 302-30Macintosh flexible tipFiber optic, interchangeable2, 3, 4Adult
GA 303-30Macintosh flexible tipFiber optic, fixed channel2, 3, 4Adult
GA 304-30Macintosh flexible tipFiber optic, integrated2, 3, 4Adult

Anesthesia kit GA 120-52: Macintosh 1 to 4 and Miller 00 to 4 with an adult and a paediatric fiber optic handle in one case. Fiber optic sets in our shop

Specifications

Blades

AISI 304 stainless steel, satin anti-glare finish. Steam autoclave up to 134 °C or high-level disinfection.

Handles

Stainless steel connector, chrome-plated brass body, knurled grip, green ring. 2.5 V LED lamp in the handle.

Warranty

5 years on blades and handles against material and manufacturing defects. Lamps and batteries excluded.

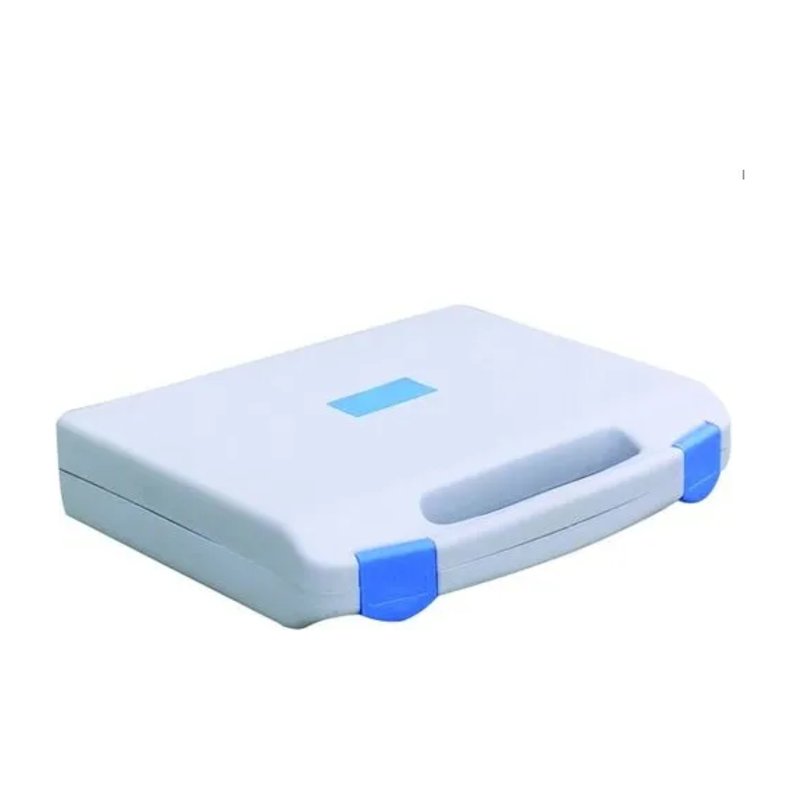

Hard laryngoscope carry case with label area for a private-label brand

Sets under your brand

Choose the contents of each set, the case colour, the label on the lid and the inserts. Blades and handles carry your logo and references by laser marking. Private label starts at 50 units per model; custom finishes and brand dressing at 100.

See the OEM programme

Frequently asked questions

What is a fiber optic laryngoscope set?

A set where the LED lamp sits in the handle and a fiber guide in each blade carries the light to the tip. The handle has a green ring to show it belongs to the green system.

Will GERATI fiber optic blades fit other green-system handles?

GERATI fiber optic blades and handles are designed for ISO 7376 green-system compatibility. Test samples with the handles already used in your hospital or market.

Which fiber optic version should I choose?

Interchangeable (GA 102, 202, 302) has a removable light guide. Fixed tube or fixed channel (GA 103, 203, 303) has no removable light parts. Integrated (GA 104, 304) has the fiber channel built into the blade.

What are the spare LED lamps for?

In a fiber optic set the lamp sits in the handle. The 2 spare LED lamps (GB-500.20) replace the handle lamp when needed.

Can fiber optic blades be used on a standard handle?

No. Fiber optic blades need a fiber optic handle, which holds the lamp. Standard blades need a standard handle.

Are batteries included?

No. The adult GB 300 handle takes 2 C batteries and the paediatric GB 302 takes 2 AA batteries.

Request a set quotation

Tell us the set codes and quantities you need. We reply with prices, lead times and the documents available for your market.

Email sales@gerati.com WhatsApp +92 300 8610614
  • 33 sets and 2 anesthesia kits
  • 2 spare LED lamps in every set
  • AISI 304 stainless steel blades, ISO 7376 fitting
  • ISO 13485 quality system, CE marked, Class I
  • OEM and private label from 50 units per model
