Laryngoscope sets
A laryngoscope set is a battery handle and a range of blade sizes, packed together in a hard case so the right blade is ready for each patient. GERATI makes 33 reusable sets in Macintosh, Miller and flexible tip patterns, in standard and fiber optic versions, plus 2 combined anesthesia kits.
- 33 sets, 2 kits
- Standard and fiber optic
- 2 spare LED lamps in every set
- Hard carry case

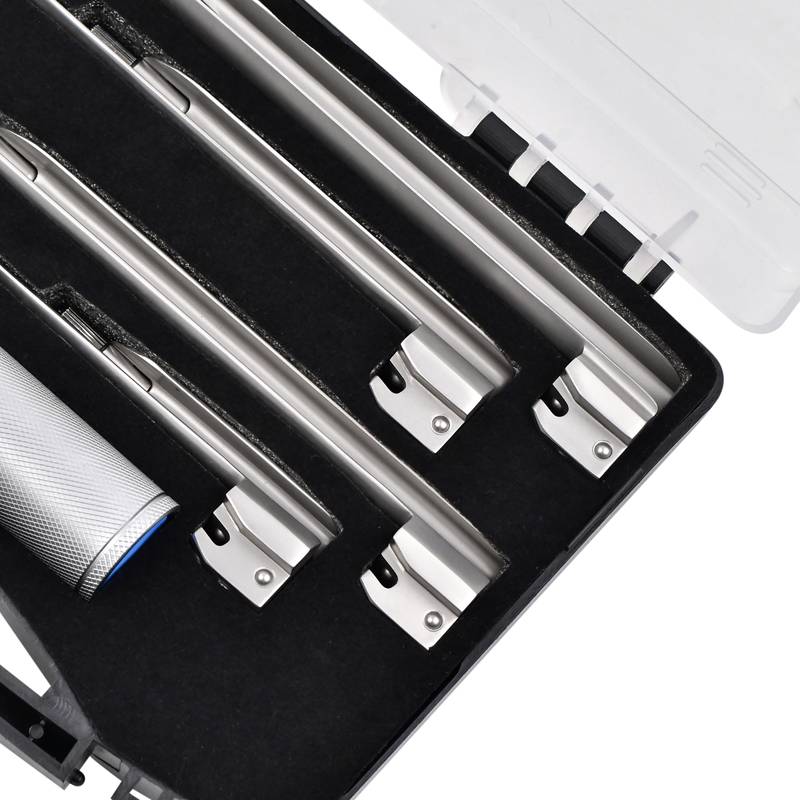

What is in the case
- 1Battery handle. Adult or paediatric
- 2Blades. Laid out in size order
- 3Foam inlay. Shaped cut-outs hold each item
- 4Clear lid. Contents visible before opening
- 5Latches. Keep the case closed in transit
- 6Carry handle. Moulded into the case
What every set contains
- 1 battery handle (adult, or paediatric in -50 sets)
- 3 to 5 blades, depending on the set
- 2 spare LED lamps
- Hard carry case with a shaped foam inlay
- Short insert with brief cleaning instructions; the full instructions for use are on gerati.com
Batteries are not included. Adult handles take 2 × C batteries and paediatric handles 2 × AA.
Standard or fiber optic?
Choose the light system first. It decides which handle comes in the set, and the two systems are not interchangeable. Fiber optic vs standard blades compared.
Set finder: all 33 GERATI sets
Find the blade family in the left column and the suffix across the top. The cell shows the blade sizes in that set; a dash means the set is not made. For example, row GA 102 and column -44 is set GA 102-44, with blades 1, 2, 3 and 4.
| Blade family | -30 | -40 | -44 | -45 | -50 | -52 |
|---|---|---|---|---|---|---|
| GA 101 Macintosh, conventional | 2, 3, 4 | 0, 1, 2, 3 | 1, 2, 3, 4 | – | 00, 0, 1, 2, 3 | 1, 2, 3, 4, 5 |
| GA 102 Macintosh, fiber optic, interchangeable | 2, 3, 4 | 0, 1, 2, 3 | 1, 2, 3, 4 | – | 00, 0, 1, 2, 3 | 1, 2, 3, 4, 5 |
| GA 103 Macintosh, fiber optic, fixed tube | 2, 3, 4 | 0, 1, 2, 3 | 1, 2, 3, 4 | – | 00, 0, 1, 2, 3 | 1, 2, 3, 4, 5 |
| GA 104 Macintosh, fiber optic, integrated | – | – | 1, 2, 3, 4 | 1, 2, 3, 4, 5 | – | – |
| GA 201 Miller, conventional | 1, 2, 3 | 0, 1, 2, 3 | 1, 2, 3, 4 | – | 00, 0, 1, 2, 3 | – |
| GA 202 Miller, fiber optic, interchangeable | 1, 2, 3 | 0, 1, 2, 3 | 1, 2, 3, 4 | – | 00, 0, 1, 2, 3 | – |
| GA 203 Miller, fiber optic, fixed tube | 1, 2, 3 | 0, 1, 2, 3 | 1, 2, 3, 4 | – | 00, 0, 1, 2, 3 | – |
| GA 301 Macintosh flexible tip, conventional | 2, 3, 4 | – | – | – | – | – |
| GA 302 Macintosh flexible tip, fiber optic, interchangeable | 2, 3, 4 | – | – | – | – | – |
| GA 303 Macintosh flexible tip, fiber optic, fixed channel | 2, 3, 4 | – | – | – | – | – |
| GA 304 Macintosh flexible tip, fiber optic, integrated | 2, 3, 4 | – | – | – | – | – |
All sets have an adult handle except the -50 sets, which have a paediatric handle. See the blades page for the working length of every blade.
Anesthesia kits
Two complete kits for theatres and emergency departments: Macintosh 1 to 4 and Miller 00 to 4 (10 blades), an adult and a paediatric handle, 2 spare LED lamps and a strong plastic case.
GA 120-50 conventional · GA 120-52 fiber optic · View kit
Choosing the size range
Adult theatre sets usually cover blades 2 to 4 (-30) or 1 to 4 (-44); -52 adds size 5 for very large adults. Neonatal and paediatric units use the -50 sets, with sizes 00 to 3 and a smaller handle. Blade selection for each patient is always a clinical decision. See the laryngoscope blade size chart.
Sets under your brand
Choose the contents of each set, the case colour, the label on the lid and the inserts. Blades and handles carry your logo and references by laser marking. Private label starts at 50 units per model; custom finishes and brand dressing at 100.
See the OEM programmeFrequently asked questions
What is in a laryngoscope set?
One battery handle, 3 to 5 blades, 2 spare LED lamps and a hard carry case with a foam inlay, plus a short insert with cleaning instructions. Batteries are not included.
What is the difference between a standard and a fiber optic laryngoscope set?
In a standard (conventional) set the LED lamp sits on each blade. In a fiber optic set the lamp sits in the handle and a fiber guide carries the light to the blade tip. The two systems are not interchangeable.
How do I read a GERATI set code?
The first part is the blade family and the suffix gives the blade sizes. For example, GA 102-44 is a Macintosh fiber optic interchangeable set with blades 1, 2, 3 and 4.
Are batteries included?
No. Adult handles take 2 C batteries and paediatric handles take 2 AA batteries, which buyers usually source locally.
Is there a paediatric laryngoscope set?
Yes. The -50 sets have a paediatric handle and blades 00, 0, 1, 2 and 3, in Macintosh and Miller, conventional and fiber optic.
Can I order a set with different contents?
Yes. Set contents, case and labelling can be configured for OEM and private-label orders, from 50 units per model.
Request a set quotation
Tell us the set codes and quantities, or the contents you need. We reply with prices, lead times and the documents available for your market.
Email sales@gerati.com WhatsApp +92 300 8610614- 33 sets and 2 anesthesia kits
- 2 spare LED lamps in every set
- AISI 304 stainless steel blades, ISO 7376 fitting
- ISO 13485 quality system, CE marked, Class I
- OEM and private label from 50 units per model
