Laryngoscope battery handles

The laryngoscope battery handle holds the batteries, powers the light and locks onto the blade. GERATI makes 6 reusable handles: adult, paediatric and stubby, each in a conventional version and a fiber optic (green-system) version. All run on standard C or AA batteries.

6 handles
Standard C or AA batteries
2.5 V LED light
ISO 7376 hook-on fitting

Request a quote Compare all six

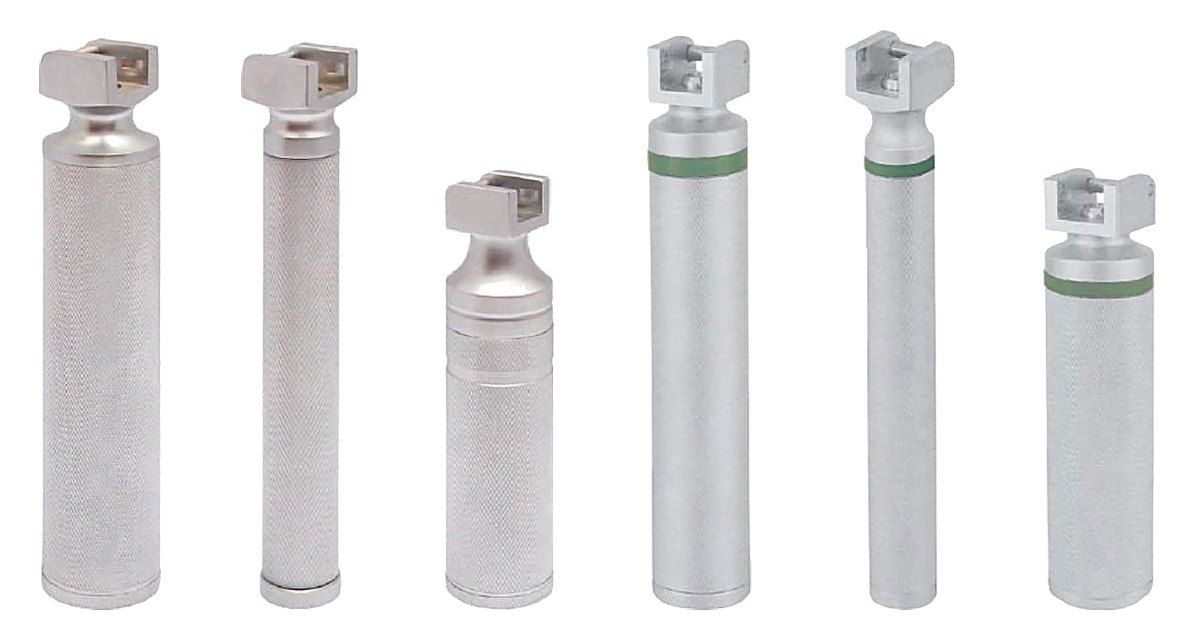

GERATI laryngoscope battery handles side by side: conventional adult, paediatric and stubby, and fiber optic adult, paediatric and stubby with green rings

Compare all six handles

Choose the light system first, because it must match the blade. Then choose the size.

Code	Light system	Size	Batteries	Voltage	LED lamp	Green ring
GB 200	Conventional	Adult	2 × C	3 V	On the blade	No
GB 202	Conventional	Paediatric	2 × AA	3 V	On the blade	No
GB 203	Conventional	Stubby	2 × AA	3 V	On the blade	No
GB 300	Fiber optic	Adult	2 × C	3 V	In the handle	Yes
GB 302	Fiber optic	Paediatric	2 × AA	3 V	In the handle	Yes
GB 303	Fiber optic	Stubby	2 × AA	3 V	In the handle	Yes

Batteries are not included. All handles use a 2.5 V LED lamp, spare code GB-500.20.

Conventional handles: for blades with the lamp on the blade

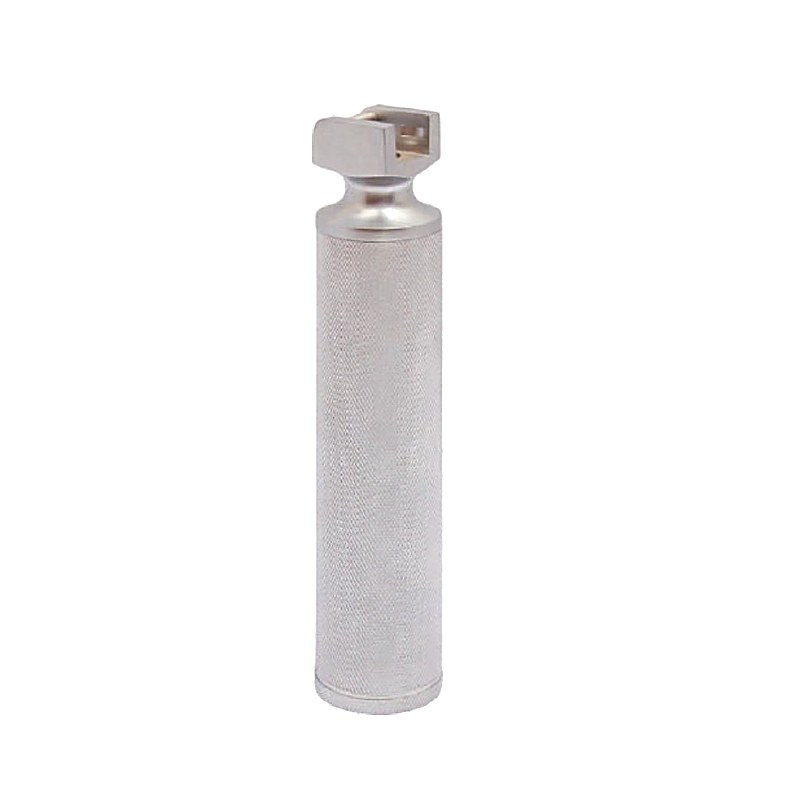

GB 200

Adult

Full-size grip for most adult work.

Batteries: 2 × C, 3 V
Blades: GA 101, 201, 301

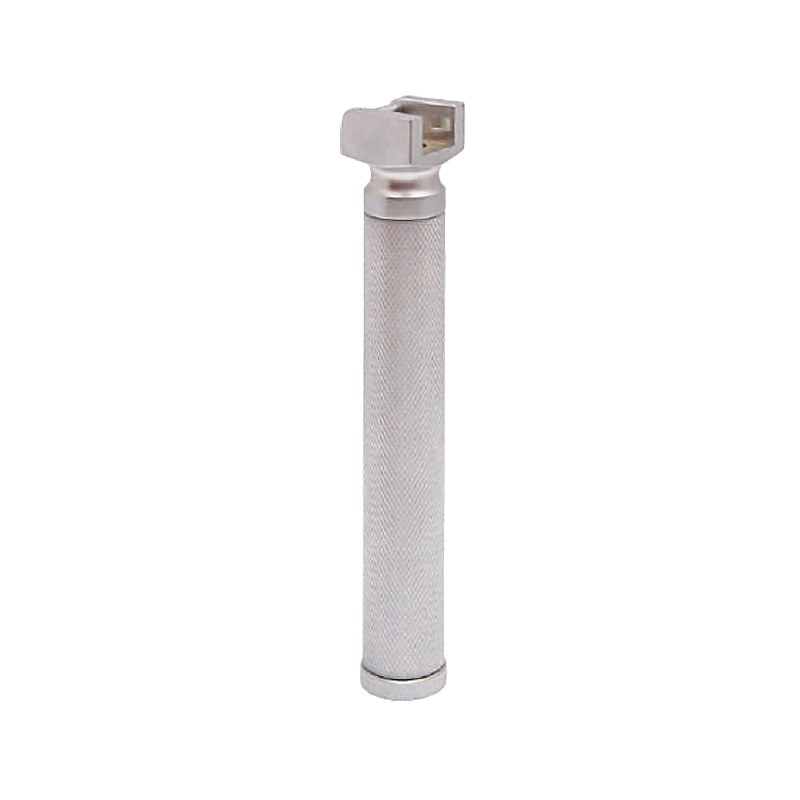

GB 202

Paediatric

Slimmer and lighter, for neonatal and paediatric sets.

Batteries: 2 × AA, 3 V
Blades: GA 101, 201, 301

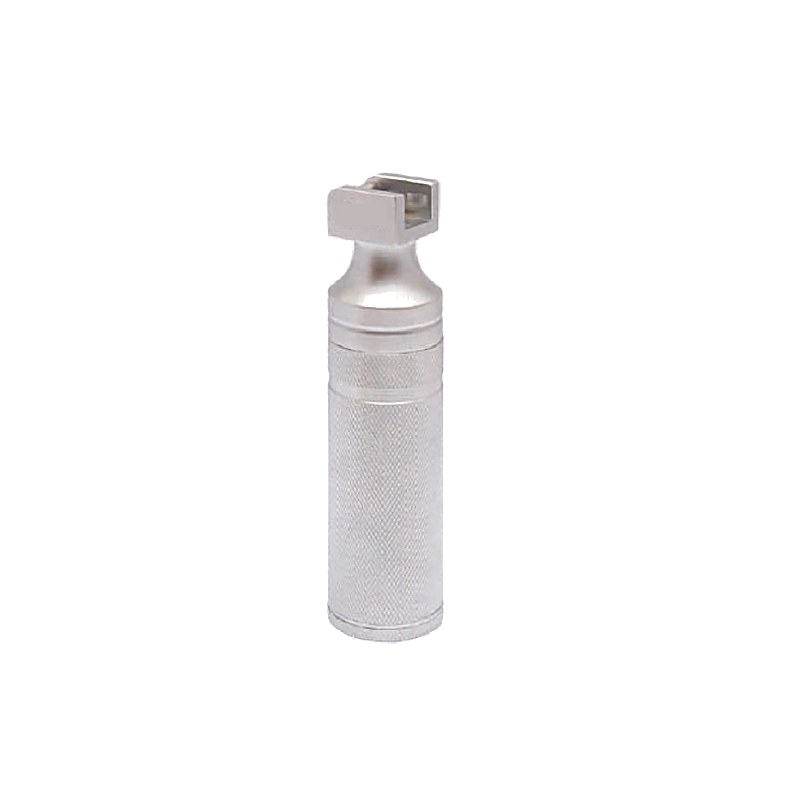

GB 203

Stubby

Short handle for when a full-length handle meets the chest.

Batteries: 2 × AA, 3 V
Blades: GA 101, 201, 301

Fiber optic handles: lamp in the handle, green ring

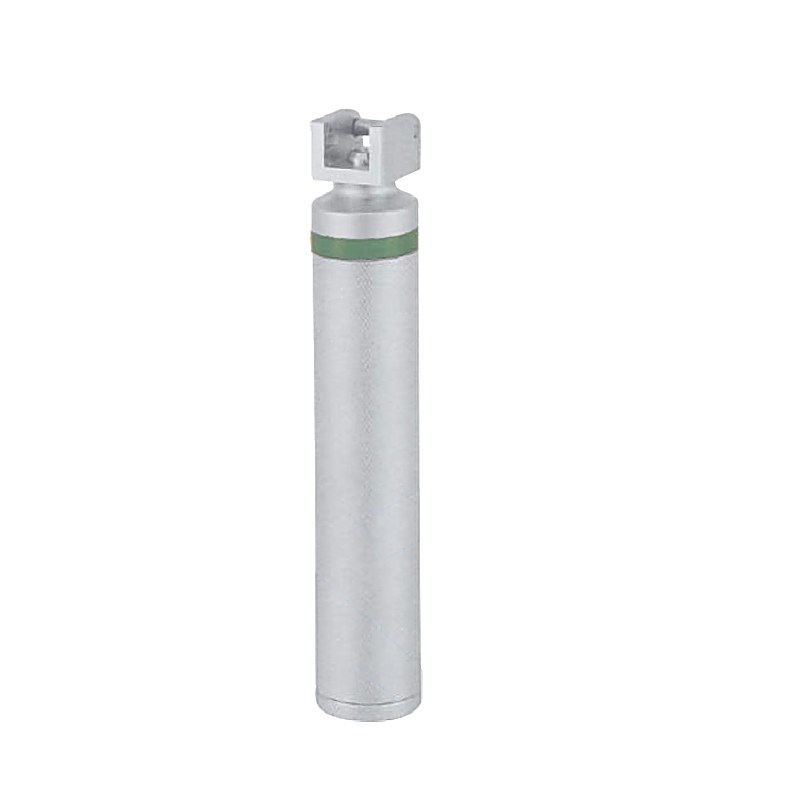

GB 300

Adult

Full-size grip, LED lamp in the handle, green ring.

Batteries: 2 × C, 3 V
Blades: GA 102–104, 202–203, 302–304

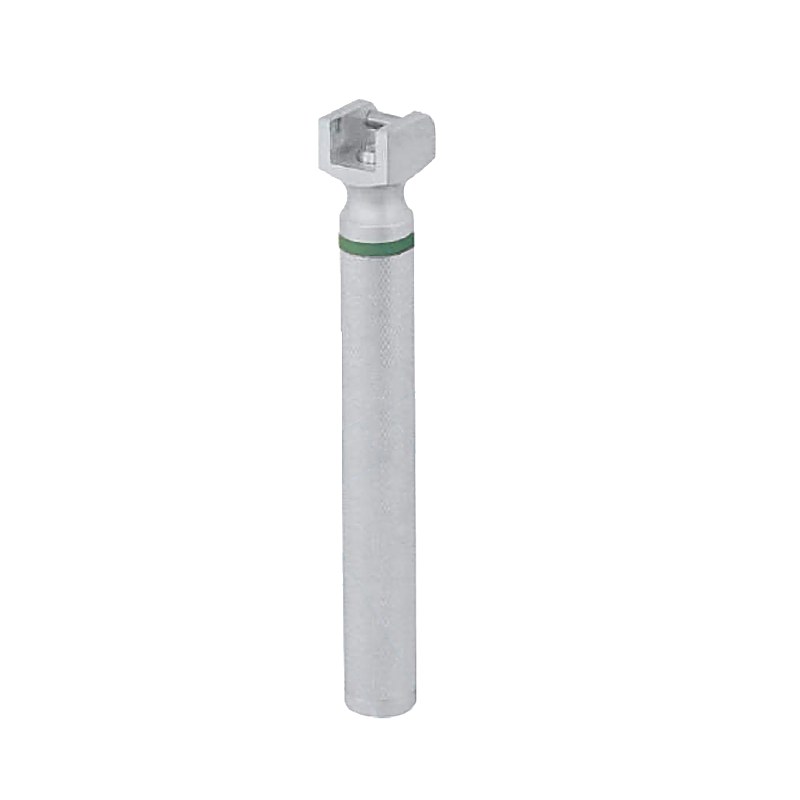

GB 302

Paediatric

Slim green-system handle for neonatal and paediatric sets.

Batteries: 2 × AA, 3 V
Blades: GA 102–104, 202–203, 302–304

GB 303

Stubby

Short green-system handle with the lamp built in.

Batteries: 2 × AA, 3 V
Blades: GA 102–104, 202–203, 302–304

Parts of a GERATI GB 300 fiber optic laryngoscope handle: hook-on connector, lamp housing, green ring, knurled battery tube and end cap

Conventional or fiber optic handle?

A conventional handle has an electrical contact at the top. When a conventional blade is opened into the working position, the contact powers the LED lamp on the blade.

A fiber optic handle has the LED lamp built into its top. The light passes into the fiber guide of the blade, so the blade itself has no lamp or electrical parts. The green ring shows it belongs to the green system.

The two systems are not interchangeable. See the blades page to match blades and handles, or read fiber optic vs standard blades.

Choosing the size

Adult: full-size grip, 2 C batteries
Paediatric: slimmer and lighter, 2 AA batteries, supplied in neonatal and paediatric (-50) sets
Stubby: short handle, 2 AA batteries; can help when a full-length handle meets the patient's chest

Handle and blade choice for each patient is a clinical decision.

Batteries and power

Standard alkaline C and AA batteries, easy to buy in most markets
2 cells in every handle: 3 V for the 2.5 V LED lamp
Batteries are not included in handles or sets
Rechargeable handles are not part of the standard range

Before cleaning or long storage, remove the batteries. Follow the instructions for use for reprocessing the handle.

Spare parts

Code	Part
GB-500.20	Spare LED lamp, 2.5 V
GB-500.50	Battery handle cap, adult handles
GB-500.55	Battery handle cap, paediatric handles
GB-500.100	Hard carrying case
GB-500.100C	Clear-lid carrying case

See all accessories

Specifications

Materials

Stainless steel blade connector. Chrome-plated brass battery tube with a knurled grip.

Fitting

Hook-on connector to the dimensions in ISO 7376. Fiber optic handles designed for green-system compatibility.

Warranty and class

5-year warranty against material and manufacturing defects, excluding lamps and batteries. CE marked, Class I.

Handles under your brand

Choose the surface finish (satin, matte or polished chrome, or a coloured finish), the grip pattern (knurled, ribbed or smooth) and cap colours, with your logo and reference laser marked. Private label starts at 50 units per model; custom finishes and brand dressing at 100.

See the OEM programme

Handles in sets

Every laryngoscope set includes one handle: adult in most sets, paediatric in the -50 sets. Standard sets use conventional handles; fiber optic sets use green-system handles.

Frequently asked questions

What batteries does a laryngoscope handle use?

GERATI adult handles (GB 200 and GB 300) take 2 C batteries. Paediatric and stubby handles (GB 202, GB 203, GB 302 and GB 303) take 2 AA batteries. All give 3 V. Batteries are not included.

What is the difference between a conventional and a fiber optic handle?

A conventional handle has an electrical contact at the top that powers the lamp on the blade. A fiber optic handle has the LED lamp built into its top and carries a green ring. The two systems are not interchangeable.

Will GERATI fiber optic handles fit other brands' blades?

GERATI fiber optic handles are designed for ISO 7376 green-system compatibility. Test samples with the blades already used in your hospital or market.

What is a stubby laryngoscope handle?

A short handle. It can help when a full-length handle meets the patient's chest, for example in patients with a large chest. Handle choice is a clinical decision.

Do you make rechargeable handles?

Rechargeable handles are not part of the standard range. All GERATI handles use standard C or AA batteries, which are easy to buy in most markets.

Which spare parts are available?

Spare LED lamps (GB-500.20), battery handle caps for adult handles (GB-500.50) and paediatric handles (GB-500.55), and carrying cases (GB-500.100 and GB-500.100C).

Order handles or request samples

Tell us the handle codes and quantities you need. We reply with prices, lead times and the documents available for your market.

Email sales@gerati.com WhatsApp +92 300 8610614

6 handles: adult, paediatric and stubby
Conventional and fiber optic (green system)
Standard C or AA batteries
ISO 13485 quality system, CE marked, Class I
OEM and private label from 50 units per model
