Laryngoscopes: blades, handles, sets and kits
A laryngoscope is a handheld instrument that lights and lifts the airway so a clinician can see the vocal cords and place a breathing tube. GERATI Healthcare manufactures reusable laryngoscopes in Sialkot, Pakistan, for distributors, hospitals and OEM brands.
- More than 100 references
- Sizes 00 to 5
- ISO 13485 quality system
- CE marked, Class I
- 5-year warranty
How to read a GERATI code
- GA
- Reusable blade or set
- 102
- Macintosh, fiber optic, interchangeable light guide
- -03
- Size 3 (sets end in -30 to -52)
The GERATI laryngoscope range
Every product is reusable, made from stainless steel and brass, and designed to the hook-on fitting dimensions in ISO 7376, so blades and handles work together across the range.

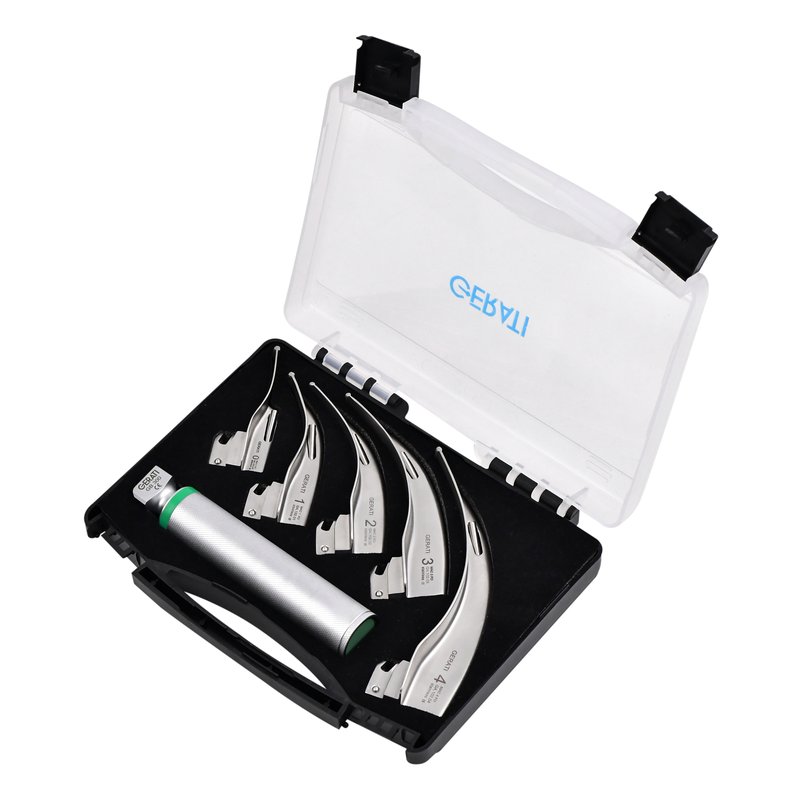

Laryngoscope sets
33 sets: one handle, 3 to 5 blades, 2 spare LED lamps and a case. Plus complete Macintosh and Miller kits.

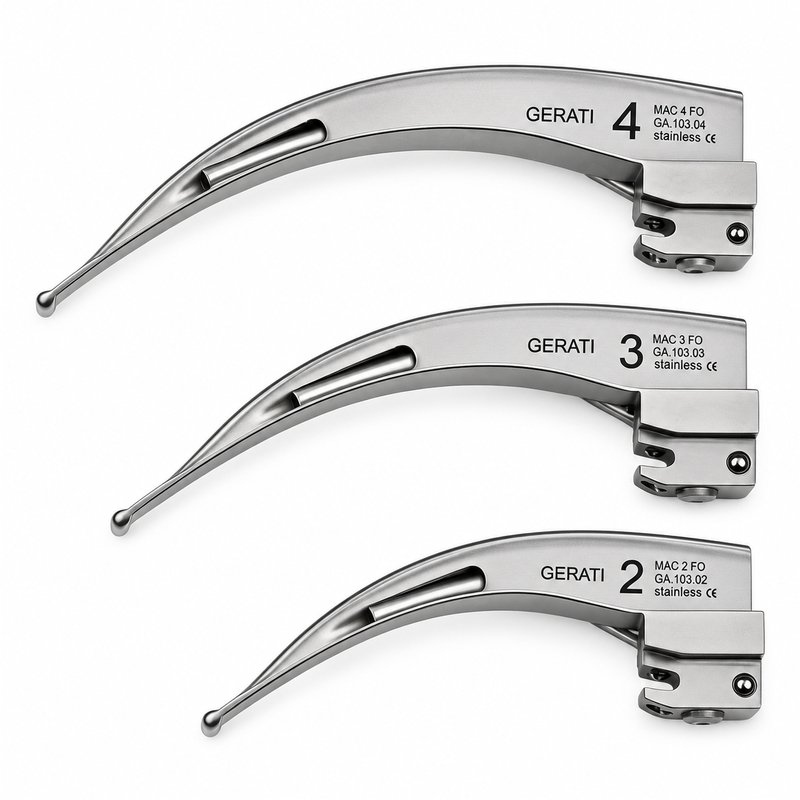

Blades
60 blades: Macintosh, Miller and Macintosh flexible tip, conventional and fiber optic.
Battery handles
Adult, paediatric and stubby, in conventional and fiber optic versions.
Accessories

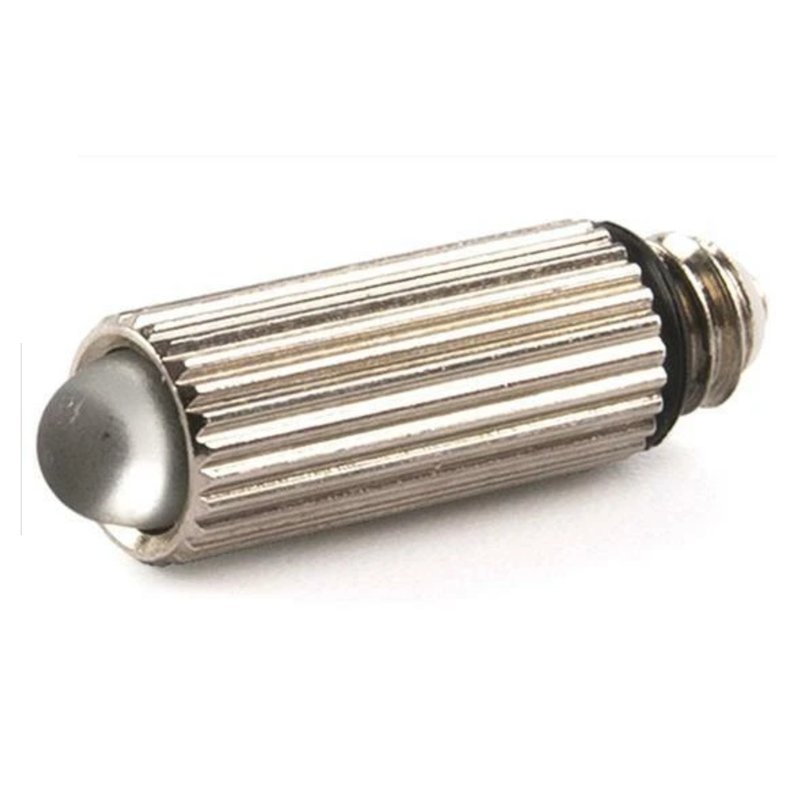

Spare LED lamps, battery handle caps and carrying cases.
Blade patterns and sizes
Choose the blade pattern first, then the light system and size. Full size charts are on the blades page.
| Blade pattern | Shape | Light versions | Sizes | Codes |
|---|---|---|---|---|
| Macintosh | Curved, tip in the vallecula. The most common adult blade. | Conventional, fiber optic interchangeable, fixed tube, integrated | 00 to 5 | GA 101 to 104 |
| Miller | Straight, lifts the epiglottis directly. Often preferred for babies and young children. | Conventional, fiber optic interchangeable, fixed tube | 00 to 4 | GA 201 to 203 |
| Macintosh flexible tip | Curved, with a lever-operated hinged tip for extra lift. | Conventional, fiber optic interchangeable, fixed channel, integrated | 1 to 4 | GA 301 to 304 |
Conventional or fiber optic?
This choice decides which handle you need. The two systems are not interchangeable.
Conventional
The LED lamp sits on the blade and draws power through its contact with the handle.
- Lower cost per set
- Remove the lamp before reprocessing
- Handles: GB 200, 202, 203

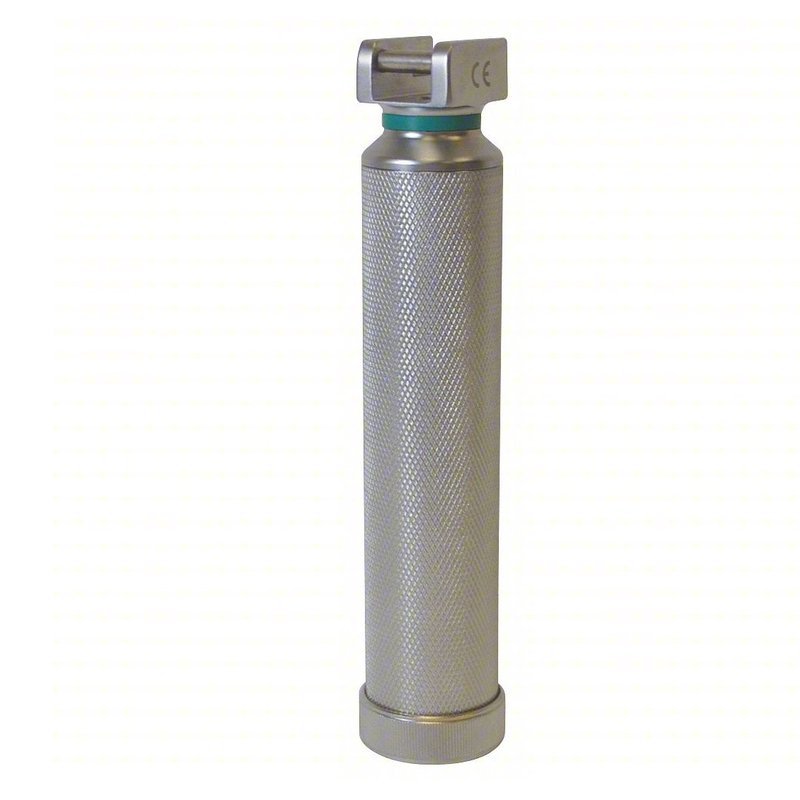

Fiber optic (green system)
The LED lamp sits in the handle and a fiber bundle carries the light to the blade tip. Handles carry a green ring.
- No electrical parts in the blade
- Brighter, cooler light at the tip
- Handles: GB 300, 302, 303
Read the full comparison: fiber optic vs standard laryngoscope blades.
Key specifications
Materials
Blades in AISI 304 stainless steel. Handles with a stainless steel connector and chrome-plated brass body.
Light and power
2.5 V LED lamps. Adult handles take 2 C batteries, paediatric 2 AA and stubby 1 C.
Reprocessing
Steam autoclave up to 134 °C, or high-level disinfection. No fixed cycle limit; inspect before each use.
Full details on the quality and compliance page.
Your brand, our factory
Every GERATI laryngoscope can be supplied under your brand, with your laser marking, finish, packaging and IFUs. Private label starts at 50 units per model, with samples in 2 to 3 weeks.
See the OEM programmeGuides and resources
- Complete guide to laryngoscope bladesTypes, materials, light sources and how to choose
- Macintosh laryngoscope bladesUses, sizes and technique
- Miller laryngoscope bladesWhen a straight blade is the better choice
- Disposable vs reusable bladesCost, hygiene and lifespan compared
- Laryngoscope blade materialsWhy stainless steel grade matters
Supplying Africa, Asia and the Middle East
We work with importers, distributors and tender suppliers across our main export regions, and supply the documents needed for product registration.
Frequently asked questions
What is a laryngoscope used for?
A laryngoscope is used to see the larynx and vocal cords, most often to place an endotracheal (breathing) tube during anaesthesia, emergency care and intensive care.
What are the main parts of a laryngoscope?
A battery handle, which holds the power source, and a detachable blade, which lifts the tongue and epiglottis. A lamp lights the airway, either on the blade (conventional) or in the handle (fiber optic).
Which blade size is used for adults?
Macintosh 3 is the most common adult size, and Macintosh 4 is used for larger adults. Blade selection is always a clinical decision.
Will GERATI blades fit other brands' handles?
Our blades and handles use the hook-on fitting dimensions in ISO 7376, and fiber optic models follow the green system. Match conventional blades to conventional handles and fiber optic to fiber optic, and test samples with your existing equipment.
Can laryngoscope blades be autoclaved?
Yes. GERATI blades can be steam sterilized up to 134 °C. Remove lamps and batteries before reprocessing, and follow the instructions for use.
Do you sell single-use laryngoscopes?
Our catalogue range is reusable. Contact us if your tender requires single-use items.
Get a quotation
Tell us the products, sizes and quantities you need. We reply with prices, lead times and the documents available for your market.
Email sales@gerati.com WhatsApp +92 300 8610614- Made in Sialkot, Pakistan
- ISO 13485 quality system, CE marked, Class I
- Reusable, autoclavable up to 134 °C
- 5-year warranty on blades and handles
- OEM and private label from 50 units per model
